VFFS MACHINES

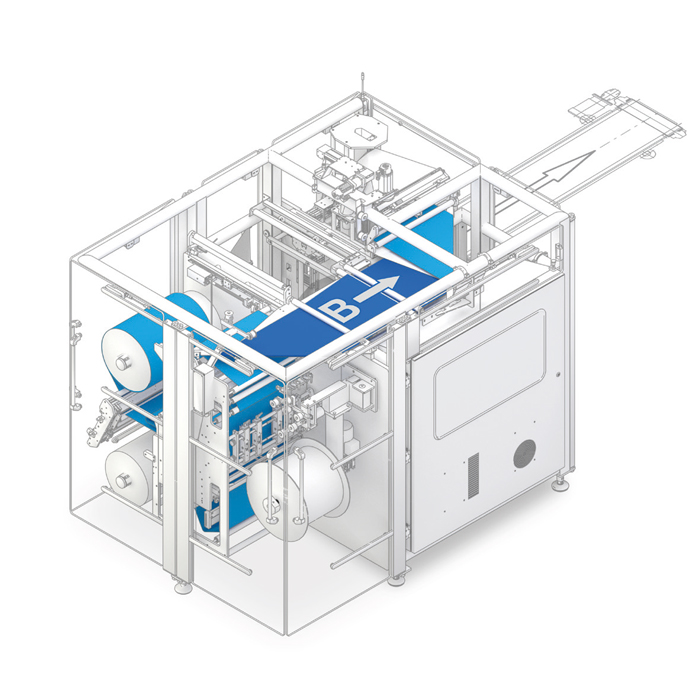

Continuous Motion VFFS wrapper The SOLARIS EVO is a new High Speed Continuous motion vertical form fill and seal wrapper that produces 3-side sealed pillow-bags, block bottom and steelo bags, Doy-style also with zip and eurohole.

The R-Series is a revolutionary range of VFFS packaging machines designed by MBP, born from over 50 years’ experience and research in the packaging sector. The perfect combination of hardware and software has produced a series of innovative solutions, which ensure that the R-Series are the best packaging machines ever.

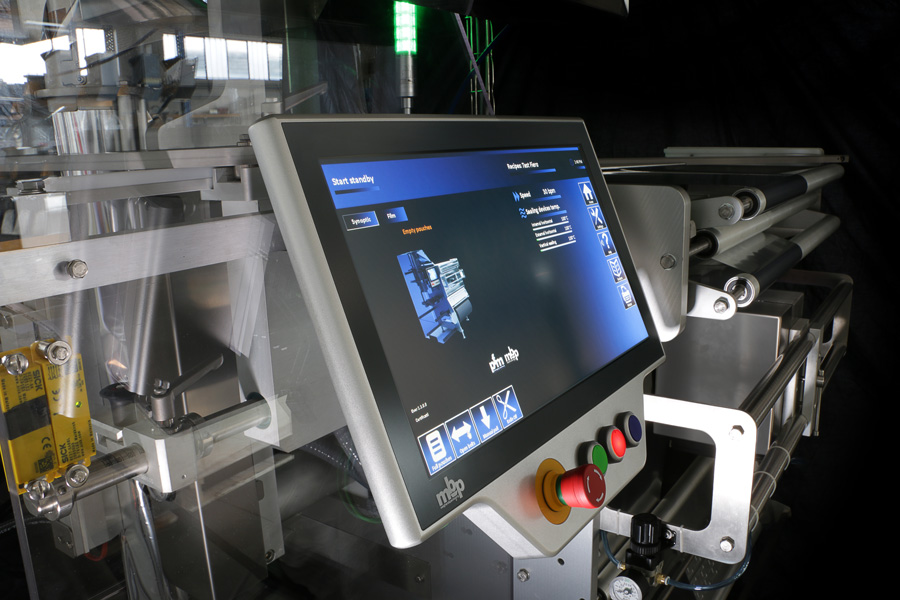

R-700 specs.:

- Intermittent machine

- Single reel

- Bag types: Pillow-bag, Gusseted, Block-Bottom, Steelo-bag 4 seal

The R-Series is a revolutionary range of VFFS packaging machines designed by MBP, born from over 50 years’ experience and research in the packaging sector. The perfect combination of hardware and software has produced a series of innovative solutions, which ensure that the R-Series are the best packaging machines ever.

RS-700 specs.:

- Intermittent machine

- Double reel

- Bag types: Pillow-bag, Gusseted, Block-Bottom, Steelo-bag 4 seal

The R-Series is a revolutionary range of VFFS packaging machines designed by MBP, born from over 50 years’ experience and research in the packaging sector. The perfect combination of hardware and software has produced a series of innovative solutions, which ensure that the R-Series are the best packaging machines ever.

R-700/500 TWIN specs.:

- Intermittent machine

- Single reel, for each machine

- Bag types: Pillow-bag, Gusseted, Block-Bottom, Steelo-bag 4 seal

The R-Series is a revolutionary range of VFFS packaging machines designed by MBP, born from over 50 years’ experience and research in the packaging sector. The perfect combination of hardware and software has produced a series of innovative solutions, which ensure that the R-Series are the best packaging machines ever.

RD-700 TWIN specs.:

- Intermittent machine, OPEN FRAME VERSION

- Single reel, for each machine

- Bag types: Pillow-bag, Gusseted, Block-Bottom, Steelo-bag 4 seal

The R-Series is a revolutionary range of VFFS packaging machines designed by MBP, born from over 50 years’ experience and research in the packaging sector. The perfect combination of hardware and software has produced a series of innovative solutions, which ensure that the R-Series are the best packaging machines ever.

RC-600 specs.:

- Continuous motion machine

- Single reel

- Bag types: Pillow-bag, Gusseted, Block-Bottom, Steelo-bag 4 seal

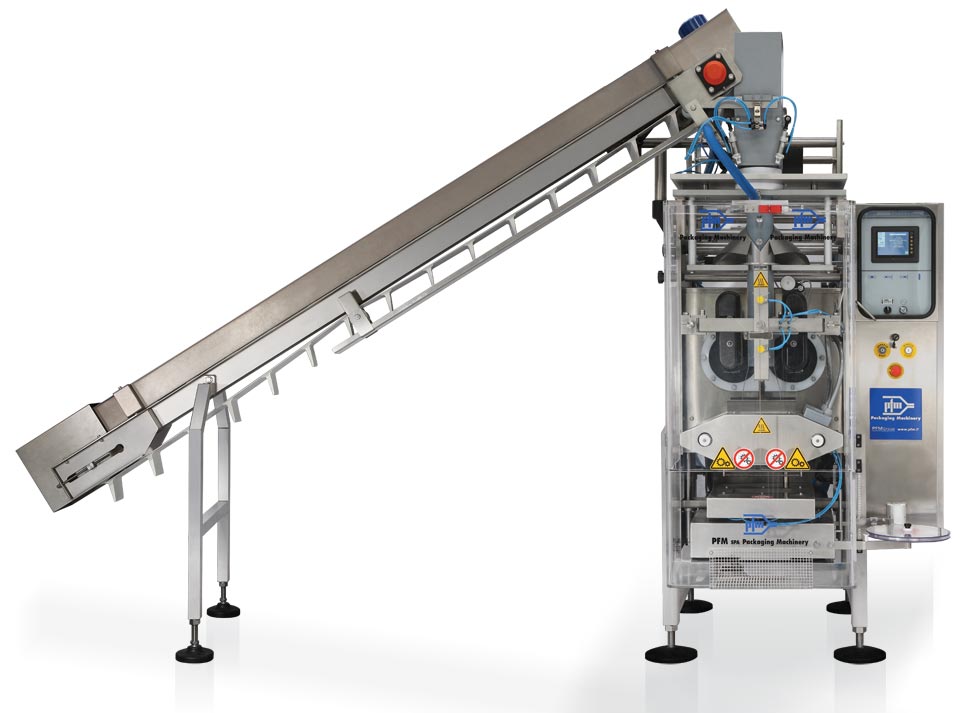

The Zenith is a vertical form fill & seal packaging machine which produces closed packets with three seals from a roll of heat-sealable material. This machine is particularly compact thanks to the intelligent use of electronics and the proportions of the various components of the machine.

Products

Suitable for wrapping granular products (chips/crisps, candies and many others) combined with multihead weighers and volumetric dosing systems.

FEATURES

• High degree of flexibility: just a few minutes to change the format. Extreme versatility enables a range of different types of packaging to be produced.
• High productivity: up to 60 packages/min. with resistant, uniform, well-proportioned seals.
• Ermetic Box structure: the structure in the form of a case and construction materials used (AISI 304 and anticorodal aluminium) guarantee protection of the mechanical and electronic components from the external environment. Moreover, cleaning operations are simple and quick.
• Man-machine interface through an LCD colour touch screen panel. Extremely simple and easy to follow software programming.
• Intermittent sealing system using special alloy crimpers.
• System for pulling film which uses a highly-adherent motorised roller.

All in one for marketing oriented packages: BG PACK designs the 90° revolving sealing carriage and a series of technical parts supplied with the machines that allow VETTA to produce a large range of various and innovative packages and with rapid format changes.

Products

Suitable for wrapping granular products (chips/crisps, candies and many others) and all types of food products that would normally be consumed in more than one stage.

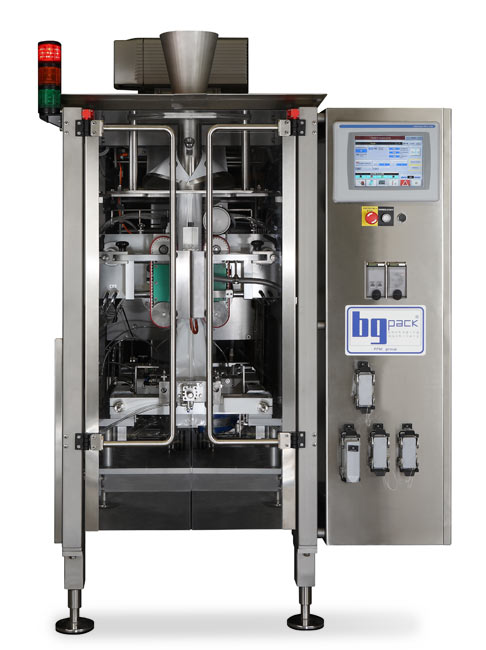

Vetta Zip Pack: it applies the zip on standard 3-seal packs, or on oval bottom packs, square bottom and 4-seal square bottom packs (Steelo Pack).

CARATTERISTICHE TECNICHE:

• All on one: the Vetta is a Form Fill Seal machine that separates itself from the rest of the pack by offering “multiple bag style” varieties and the versatility of many machines in one system. Vetta can offer up to 30 different bag styles, from standard vertical form fill and seal using clear or printed film, to stand-up oval bottom bags with sombrero hole punch.
• User Friendly: twin-axled brushless motors controlled by PC
  with a colour touch screen panel, and software development
  based on Windows NT in order to give the utmost simplicity in
  each programming stage.
• Cleaning: in just a few minutes the machine can be completely
  cleaned, even in the most difficult areas, all of which are within
  reach, easily accessible and extractable.
• Revolving sealing carriage system: the change of format is possible in few minutes. The revolving sealing carriage allows an extremely operative easiness and makes it possible to realize up to 28 variables of possible packs.
• Electronics: the machine working depends on independent motors controlled by PLC or industrial PC interfaced by colour touch screen with possibility of connection via modem for on-line Teleservice.
• Complete and integrated line: Vetta can be combined with the range of MBP multihead weighers (PFM group) in which any aspect of communication and system integration is brilliantly solved. In this way elevated standard of reliability, precision and elevated average productivity are assured.

Comet is the expression of the highest level of PFM technology and design applied to vertical wrappers. The machine has been designed for high speed wrapping and round-the-clock applications. It produces pillow pack bags from a reel of heat-sealable packing film.

Products

Suitable for wrapping granular products (chips/crisps, candies and many others) combined with multihead weighers and volumetric dosing systems.

TECHNICAL DATA:

• New body design, “Hermetic Box”, protected from infiltrations of liquids and powders.
• New High Speed Long Dwell rotary sealing system, tested at 200 mechanical cycles per minute. Sealing crimpers removable from the front.
• Full servo wrapper driven by brushless servomotors with axis motion controller.
• MMI with Colour touch screen. Operator’s friendly software. Integrated modem for on-line Teleservice.
• Expansion reel holder with self-centring system.
• Power feed roll controlled by independent motor.
• Extremely compact design for a perfect control and synchronisation with feeding systems thanks to the short product falling distance.

The ZC1 integrated solution optimises the weigher-packaging machine combination by making the most of the Series C1 multihead weigher and the model Zenith vertical packaging machine, which produces pillow packs with three seals and square bases or Steelo Packs (4 side seals). The ZC1 offers high quality standards which translate into high weighing accuracy, aesthetically perfect packs with easy maintenance, programming and operating safety over time.

Products

Snacks and dry food

Structure: compact, designed to house the 10 and 14-head versions of the Series C1 multihead weigher. The particularly rigid structure is designed to eliminate vibration and thereby optimise operation of the multi-head weigher.

Hygiene: the ZC1 has been studied in every detail to facilitate cleaning and sanitisation operations.

Flexibility: the ZC1 enables quick and easy format changeovers. The weigher’s software features enable the machine to learn its own parameters thereby reducing intervention time by the operator who only needs to enter data relating to weight and speed. Extremely short packaging machine forming box and reel replacement times. The particularly advanced software guides the operator through the entering of required data.

Packaging Machine Features

• Structure “Hermetic Box” type steel frame protected against the infiltration of dust.
• Control of functions through PLC (latest generation microprocessor).
• Drawing of wrapping material by self-centring “pulling belts” with pneumatic opening.
• Control of packaging length using photocell system with print registration system.
• Sealing jaws constructed steel with limited size variation.
• Easily interchangeable forming box.
• Self-centring reel-holder shaft.

PFM Supernova is a vertical Form Fill Seal packaging machine that produces packs with three seals starting from a reel of heat-sealable film. Designed specifically for high speed packaging, the Supernova is an extremely compact, robust machine that uses highly developed electronics and simple, effective software.

Packageable Products

Crisps, Snaks, Pretzels, Sweets, Pet food

TECHNICAL DATA

Speed: 300 mechanical cycles per minute.
Operating System: Full servo controlled, completely automatic.
Sealing system: Long Dwell.
Film feed system: automatic reel splice.

Advantages

Packaging machine designed to work at 300 mechanical cycles/minute.
Long dwell crossways sealing system which prolongs the sealing time and produces hermetic seals.
Highly compact.
Automatic phasing of product between weigher and packaging machine without the need for any adjustment, at any packaging speed, including variable speed. This system guarantees high average production rates.
Particularly robust mechanical frame designed for 24 hour operation.
Single weigher-VFFS touch screen with guided programming logic.
VFFS+multi-head weigher can be connected to the LAN network, including wireless, for downloading/uploading data, recipes, statistics and outside connection to the on-line help system if required.

Software

The software developed exclusively by PFM for the Supernova includes some outstanding features. At the same time, the extremely high transmission speed of the hardware data, which is also extended to the MBP weigher, allows for perfect synchronisation between the weigher/ VFFS and precise control of print registration on the film. Main features of the Supernova software:

• Sealing time can be regulated (within the permitted range) independently of the other parameters whatever the production speed or length of pack. A special regulation parameter linked with the recipe is featured on the touch screen. This function, combined with the exclusive long dwell sealing system, ensures an extra long, consistently optimal sealing time which guarantees the quality and resistance of the seals.
• Automatic control of synchronisation between the multihead weigher and packaging machine irrespective of packaging speed. Synchronisation between the product arriving and the movement of the crimpers is therefore always perfect.

The combination of these two features reduces machine downtime to almost zero thereby increasing guaranteed average production rates to maximum levels.

New vertical form fill seal wrapper for pillow pack bags starting from a flat reel of heat-sealable packing film.

Products

Suitable for wrapping granular products (chips/crisps, candies and many others) combined with multihead weighers and volumetric dosing systems.

TECHNICAL SPECIFICATIONS:

• High productivity : the machines is driven by servo motors, controlled by PLC and interfaced by colour touch screen (servo version). Pneumatic version also available. The particular hardware configuration and the PFM software allow the machine to achieve up to 120 cycles/min.
• Easy cleaning : the “Hermetic Box” type frame allows a total isolation of the mechanical and electrical components from the external environment. This allows for easy cleaning operations.
• Quick and flexible format changeover . Only a few minutes for the reel change carried out by means of two self-centering and self-closing cones. With the self-centering system of the film reel there is no waste in time for the manual centering. The forming tube is equipped with the “quick and guided release system” for an extremely easy changeover. The Azimuth can be equipped with the special toolings to produce the STEELO-Pack with 4 sealed corners.
• Tele-service system the particular hardware configuration of the machines and the weighers allows to remotely control all parameters and the machine functions. In case of potential machine problems it is possible to give remote support to the maintenance team or make the system analysis and rapidly identify the malfunctions.
• PFM integrated wrapping systems use the best productive capacity of its multi-head weighers and the high flexibility of its vertical wrappers. The high level of integration ensures a common programming language for the various machines with an easy supervision of the entire line.

The PV 200 is a vertical packaging machine which produces packs sealed on three sides from a roll of polyethylene-type material.

Products:

PV 200 is specialised in packaging milk.

Features

• General operation by means of a PLC-controlled Brushless-type motor.
• Construction is in AISI 304 stainless steel with rounded corners (for total hygiene) and maximum protection against every type of seepage.
• Integrated C.I.P cleaning system for the tank and the milk dosing unit. The system provides for an automatic pressurised cleaning cycle.
• Hot bar sealing unit, and cooling system. Mobile carriage system with up-and-down motion.
• Tank built in AISI 304 stainless steel, with rounded corners and a float for controlling the fill level.

OTHER TECHNICAL DATA:

• Packs: from 250 up to 2000 cc.
• Production : 40-50 1000 cc packs per minute.
• Packaging material: polyethylene (PE) 80 micron.
• Construction: AISI 304 stainless steel with rounded corners.
• Electrical panel with forced air ventilation.
