FLOWPAKKERE

Scirocco is a flow-pack servo assisted horizontal wrapping machine for producing wraps hermetically sealed on three sides from a reel of heat-sealed wrapping material. The machine has been designed for Modified Atmosphere Packaging and constructed in such a way that all its parts can be cleaned.

AVAILABLE MODELS:

1. SCIROCCO BA with film roll in a high position
2. SCIROCCO BB with film roll in a low position
3. SCIROCCO POCKET BAG for reclosable packs which can be opened and closed thanks to our system that utilises a single reel of thermo sealing film..
4. SCIROCCO COMBI with double sealing system (pillow and reclosable bags)

TECHNICAL DATA:

• Long Dwell transferring continuous motion transversal sealing system (PFM patent)
• Available with 1-2-3-4 crimpers per shaft, according to the product and the required speed
• The system guarantees perfectly hermetic sealing, for up to 200-250 packs per minute
• Servo-Assisted operating system by means of Brushless motors in direct electric axis, with touch screen controls and the possibility of on-line connection
• Cantilevered machine construction with rounded corners, openable on all sides: the mechanical and electrical components are housed separately at the back of the machine, while the front is free from obstruction and thus quick and easy to clean in every point, visible or hidden
• Reel-holding shaft with pneumatic extension and disc brake system
• Automatic film mark reel changing system with no reduction in machine speed
• The sealing units can be removed from the machine in 10 minutes for routine workbench maintenance
• Construction in AISI 304 stainless steel.

Welcome to the future

Shelf Space.
The final frontier…

These are the voyages of the spaceship enterprise D-Series: to boldly go where no product packaging has gone before.

XPLORE D-SERIES NOW

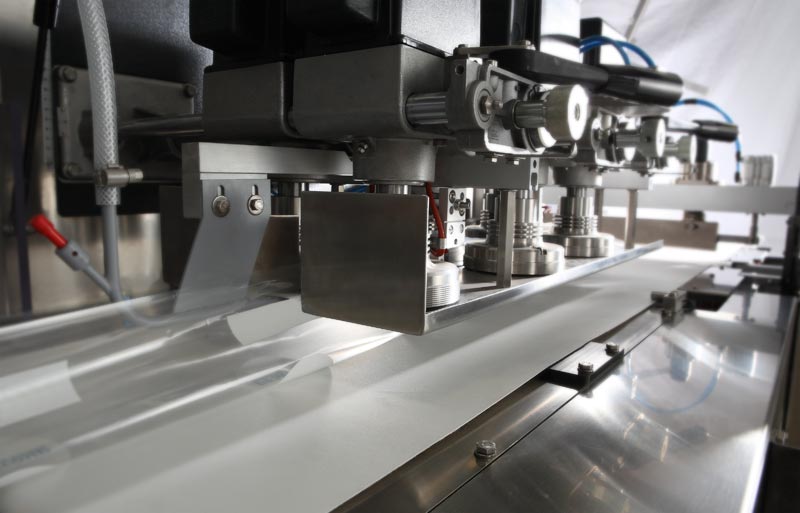

Shamal is a Servo controlled horizontal flowrap machine with bottom reel that produces pillow packs with three air tight seals, from a reel of heat sealable wrapping material. This Shamal is also designed for M.A.P. (Modified Atmosphere Packaging).

Main Features:

• Flexibility: the format can be changed in just a few minutes. The Shamal includes the LVA function which is the automatic adjustment of bag length according to the length of the product, as well as a print registration facility. The ERS (Extended Rotary Sealing) concept allows to products to be wrapped with a max. height of 190 mm.
• Ergonomics: The new design of the main guard, shuttle conveyors, crimper assembly and crimper height adjustment have improved the user friendliness of the machine and reduced set-up times.
• Easy cleaning: constructed in AISI 304 with large radius corners, all product contact parts can be sanitised and are made of FDA approved materials.
• Packaging speeds: up to 120 cycles per minute if supplied with fixed pitch function or 90 with LVA function.

MISTRAL changes the world of Modified Atmosphere, combining packaging speed with hermetic sealing.
A flow-wrap packaging machine which produces packs sealed on three sides from a roll of heat-sealable packaging film, the Mistral is designed for high-speed MAP packaging.

Features

 Exclusive patented Long Dwell transverse sealing system, available in the following versions: 1-2-3-4 crimpers per shaft (High Speed).

• Cantilever construction: the mechanical and electronic components are housed at the back of the machine, with only the sealing units at the front. Thus, cleaning, hygiene and maintenance operations are facilitated.
• Built in AISI 304 stainless steel, with the casing built with rounded corners in accordance with the strictest international hygienic standards.

Available versions:

• Basic mechanical version
• Electronic version (2 axes)
• Servo version (3 axes), colour touch screen, on-line help system.
• High Speed Long Dwell version with 2-3-4 crimpers per shaft
• Version with film roll mounted in a high or low position
• Version for BDF packaging material.

TECHNICAL DATA:

• Suitable packaging materials: laminated, bonded or micro-perforated polypropylene, polyethylene, gas barrier materials.
• Packaging speed: up to 140, and up to 400 packs/min .
• Packageable product size: length min 100 mm max 350 mm; width min 10 max 320 mm; height max 110 mm (depending on the sealing system used).
• Automatic loading systems: in line, 90º and drop down loading, along with many other systems designed according to specific requirements.

Zephyr is a flow-pack servo assisted horizontal wrapping machine for producing wraps hermetically sealed on three sides from a reel of heat-seal wrapping material. The machine has been designed with cantilevered main frame and matched perfectly to a series of automatic feeding systems. Ideal for medium speed packaging.

Total Hygiene and accessibility on each side

Cantilevered machine construction; the mechanical and electrical components are housed separately at the back of the machine, while the front is free from obstruction and thus quick and easy to clean in every point, visible or hidden.

FEATURES

• Fully cantilivered frame with separation plate.
• 4 servo driven axis.
• 4 finwheel units (i.e. cold, two heated, fold-over).
• Heat and cold sealing equipment.
• Servo driven unwind feed rollers.
• Automatic film splicer.
• Pneumatic blocking double reel holders.
• Coloured touch screen.
• Diplay on machine staus, diagnagnostic, production data and alarms.
• Contact product parts in stainless steel.
• Chain with cantilivered pusher fitting.
• Two-way print registration unit.
• Driven top brush at discharge belt.
• Ejector for empty/double packges.
• Complete series of infeed conveyors.

OPTIONS

• Coding and reading device.
• Cooling plate on longitudinal sealing wheels.
• Plate-top chain.
• Vacuum system.
• Modified atmosphere packaging.
• No gap, No seal function.
• No product, No paper function.
• Long Dwell crimper unit.
• Mechanical or air gussting device.
• Full stainless steel version.

PFM Pulsar is a full servo horizontal wrapping machine to make pillow-pack bags from a flat reel of wrapping material.
PFM Pulsar has been designed to wrap products of different sizes and shapes thanks to the LVA feature for the automatic adjustment of packaging length according to product length.

Packageable products

Green leafy vegetables, pizzas, panettones (traditional Italian Christmas cakes), bologna and salami in general, even of big dimensions.

FEATURES

• Flexibility: format change does not take more than just a few minutes. PFM Pulsar allows the functions of automatic length adjustment (LVA feature) – according to product length – and of print centring. Maximum reel width up to 950 mm and maximum diameter up to 350 mm.
• Hygiene: the structure has been made in AISI 304. All the parts which come in contact with the product can be sanitized and are made with materials complying with FDA regulations.
• Servo-assisted: machine run is controlled by two AC and two brushless motors specifically dedicated to the operation of the transverse and longitudinal sealing groups. The transverse sealing section is adjustable. Machine functions are controlled by PLC interfaced by an HMI control touch panel.
• Box motion sealing system: sealing time is prolonged in order to guarantee hermetic sealings. PFM Pulsar reaches the speed of 50 cycles/min. with LVA feature. The adjustable sealing section can reach a maximum travel of 120 mm.

TECHNICAL FEATURES

• Adjustable forming box (Fixed version as optional).
• 3 sets of fin seal rollers (film pulling, sealing and folding) with automatic opening of the sealing set.
• Pneumatic wrapping material reel holder with fine adjustment.

MAIN OPTIONS

• Date printing unit.
• Version for polyethylene films.
• Version for shrink films with impulse type of sealing.

The Tornado LD is a horizontal flowrapping machine that produces up to 100 packs/min with hermetic seals from a flat reel of heat seal wrapping material. The Tornado LD is specifically designed for “M.A.P.” (Modified Atmosphere Packaging).

Products

Food products that require high speed hermetic packaging, even in MAP (Modified Athmosphere Packaging): cheese, bread, pasta, sausages, meat and more.

Main Features

• Hermetic sealing at high wrapping speeds: thanks to PFM’s patented Long Dwell sealing head with oil bath transmission. The Tornado easily achieves wrapping speeds of 100 packs per minute.
• Easy cleaning: constructed from anticorodal aluminium and AISI 304 with large radius corners, all product contact parts can be sanitised and are made of FDA approved materials.
• Cantilevered construction: the mechanical and electronic components are housed at the back of the wrapping machine in a separate, protected environment. The front of the machine is clear and can easily be cleaned. Product debris does not come into contact with any mechanical or electrical parts.

The machine is manufactured with the following standard features:

• A 2.5 metre infeed conveyor with adjustable approach rollers.
• An adjustable forming box to easily accommodate changes in pack dimensions.
• Double self-centring reel holder complete with brakes (BA version).
• Photocell for printed and registered wrapping material (Servo and Electronic versions).
• Crimper dwell timing in oil bath.
• Motorised height adjustment of crimpers.

MODELS AVAILABLE:

1. BA version with reel feed from above (Conventional).
2. BB with reel feed from below (Inverted).
3. Electronic version.
4. Servo version.
5. Polyethylene version.
6. LVA version: automatic pack length adjustment depending on product length.

Horizontal flow-wrap machine with rotary crimp jaws, designed to wrap at speeds of up to 100 bags per minute (depending on products and wrapping material). An extremely versatile, compact and reliable machine, the Swift will accomodate a wide range of products, with its standard adjustable forming box, providing the solution to quick and efficent size changes.

Speed: set-up change can be performed in about 3 minutes, without compromising packaging speed (up to 100 mechanical cycles per minute).
Easy to use: the machine requires no particular maintenance, and it guarantees excellent performance and maximum operating safety.

Products

Swift is ideal for packaging solid products in the foodstuffs sector in general, stationery materials and many other products.

TECHNICAL SPECIFICATIONS

• Compact Design.
• Adjustable Forming Box.
• Simple Wrapper Feed.
• Handweel adjustment of bag lenght.
• Handweel adjustment of crimper dwell.
• Handweel adjustment of crimper position.
• Adjustable crimper height.
• Adjustable infeed position.
• Quick change infeed pushers.
• Variable speed control.
• Handwheel adjustment cut off lenght via speed variator.
• Two sets of fin seal rollers.
• Overload clutch on crimpers.
• Dog clutch for setting crimper timing.
• All product contact parts in stainless steel or food quality plastics.
• Two electronic temperature controllers.
• Speed control via A.C. invertor.
• Guarding to international standards.
• Three coats of epoxy paint.

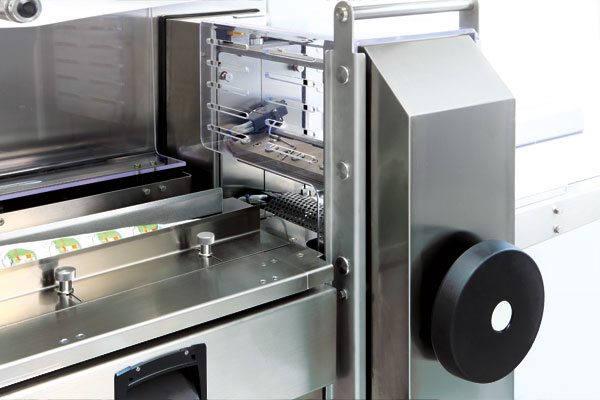

Full servo horizontal pillow-pack wrapper, specifically designed for the dairy sector, to obtain pillow-pack style packs from a flat reel of heat/cold sealable wrapping material. Sturdy construction with a carbon steel fabricated frame, compact design, cutting edge hardware, reliable and operator friendly control software are the results achieved in this project, expression of experience achieved in many years of manufacturing of flowpack machines and automated lines. A high quality innovative machine.

• Cantilevered Construction: manufactured with modular pre-assembled units designed to be easily accessible and replaced. The front of the machine is free from any obstruction. Elegant and rational design, simple yet sturdy construction.
• Operation: full servo wrapper with axis motion controller and brushless servomotors. To drive: infeed conveyor, fin seal rollers, sealing crimpers.
• No mechanical drives: drive motors are connected directly to the various assemblies. The electrical panel is housed inside the machine frame and protected from the external environment.
• Compact design, easy cleaning: cantilevered structure made entirely of AISI 304 stainless steel with rounded corners and new design concept called “independent perimeter support” make cleaning and sanitising operations extremely simple and effective. Can be fitted with automatic feed belt washing system (optional) designed to be connected to a centralised CIP system.
• Ergonomic design: HMI and start/stop buttons have been ergonomically situated to facilitate accessibility.
• Reliability: internal expanding reel-holder shaft with fine adjustment of reel centring and equaliser brake.
• High speed and versatility: up-to 160 cycles/min. and capable of wrapping endless different products in the food and nonfood sectors.
• Human/machine Interface: colour touch screen. User friendly HMI to adjust all the machine parameters and save them in a dedicated recipe. The PFM Sirio will automatically adjust the bag length, print registration position, the crimpers position the dwell and the wrapping speed. The adjustment of the sealing temperature of the fin seal rollers and the transverse sealing crimpers is integrated into the touch screen.

MECHANICAL FEATURES

• Ultra-hygienic tilted inlet conveyor belt with interchangeable pushers.
• Servo-assisted machine featuring 3 brushless motors controlled by means of H.M.I. high-resolution touch screen and simple software.
• Packaging speed: the PFM Sirio performs 160 mechanical cycles a minute with perfect seals.
• AISI 304 cantilevered structure with independent perimeter support, compact, robust, easy to inspect and perfectly sanitisable.
• Drop-forged steel transverse sealing unit.
• Internal expanding reel-holder shaft featuring fine adjustment of reel centring and equaliser brake.

UBIQUITY:

UBIQUITY is the innovative PFM software platform for tele-service that allows the zeroing of distances by limiting travelling and operating on the control panel of the multi-head weighers on PLCs when installed on the wrapping line.

Ghibli is a horizontal flow-wrap type packaging machine for producing packs sealed on three sides from a roll of heat-sealable packaging film.

Total Hygiene and accessibility on each side

Cantilevered machine construction; the mechanical and electrical components are housed separately at the back of the machine, while the front is free from obstruction and thus quick and easy to clean in every point, visible or hidden.

FEATURES

• Fully cantilivered frame with separation plate.
• 4 servo driven axis.
• 4 finwheel units (i.e. cold, two heated, fold-over).
• Heat and cold sealing equipment.
• Servo driven unwind feed rollers.
• Automatic film splicer.
• Pneumatic blocking double reel holders.
• Coloured touch screen.
• Diplay on machine staus, diagnagnostic, production data and alarms.
• Contact product parts in stainless steel.
• Chain with cantilivered pusher fitting.
• Two-way print registration unit.
• Driven top brush at discharge belt.
• Ejector for empty/double packges.
• Complete series of infeed conveyors.

OPTIONS

• Coding and reading device.
• Cooling plate on longitudinal sealing wheels.
• Plate-top chain.
• Vacuum system.
• Modified atmosphere packaging.
• No gap, No seal function.
• No product, No paper function.
• Long Dwell crimper unit.
• Mechanical or air gussting device.
• Full stainless steel version.

Full servo horizontal pillow-pack wrapper to obtain pillow-pack style packs from a flat reel of heat/cold sealable wrapping material. Sturdy construction with a carbon steel fabricated frame, compact design, cutting edge hardware, reliable and operator friendly control software are the results achieved in this project, expression of experience achieved in many years of manufacturing of flowpack machines and automated lines. A high quality innovative machine.

Packaged products

Products from the food, cosmetic, pharmaceutical, graphic and non food sectors.

Features

• Full servo operated wrapper with axis motion controller and brushless servomotors. To drive: infeed conveyor, fin seal rollers, sealing crimpers.
• No mechanical drives drive motors are connected directly to the various assemblies. The electrical panel is housed inside the machine frame and protected from the external environment.
• Cantilevered Construction manufactured with modular pre-assembled units designed to be easily accessible and replaced. The front of the machine is free from any obstruction. Elegant and rational design, simple yet sturdy construction.
• Compact design, easy cleaning: thanks to the cantilevered construction and the use of polymer moulded
  components with graceful radiuses there are no dust traps. All guards can be easily removed.
• Ergonomic design: HMI and start/stop buttons have been ergonomically situated to facilitate accessibility.
• High speed and versatility: up-to 120 cycles/min. and capable of wrapping endless different products in the food and non-food sectors.
• Fin seal assembly including three sets of rollers: film pulling, film sealing complete with automatic opening at machine stop and fin seal foldover.

The Hurricane is a horizontal flowrap packaging machine which produces closed packs with three sealed edges from a reel of heat-sealable wrapping material.

Packaging which is strong, attractive and perfect: the special design of the forming box, optimum calendar and rollers for film transfer and the positioning of components combine to give a machine which wraps products perfectly, producing accurate, crease free seals.
High flexibility and quick size change: the Hurricane can wrap a wide range of regularly shaped, solid products from the food, stationery, chemical and pharmaceutical sectors. It is not necessary to change any mechanical parts in order to adjust the set-up, this is done by using two hand-wheels which carry out immediate adjustments to the pack length and the speed of the sealing crimpers.
Heat-sealable materials: special technical solutions have been applied which enable the Hurricane to use heat-sealable materials such as laminated or bonded polypropylene, polyethylene (Poly version), micro-perforated and shrink-wrap materials.

Products

Packages products in the foodstuffs sector, the cosmetics sector, the pharmaceutical sector and the stationery sector.

TECHNICAL SPECIFICATIONS:

• Conforms to EEC standards.
• 2 M long infeed conveyor belt with quick-release and interchangeable pushers.
• 2 hand wheels with numerical reference system for adjusting pack length and crimper speed.
• Forming box with adjustable height and width for different size products.
• 3 sets of wheels for longitudinal sealing: the first draws the wrapping material, the
  second seals the material and the third folds the flap.
• Self-centering reel holder with brake.
• 600 mm long motorized discharge conveyor.
• All product contact parts are built in AISI 304 stainless steel.
• Carbon steel frame, standard colour white RAL 9010 or AISI 304 stainless steel version.

VERSIONS AVAILABLE:

1. Extra wide mechanical version: 750 mm reel, 350 mm sealing unit.
2. Electronic version (2 axis): 500 mm reel, 250 mm sealing unit.
3. Extra Wide electronic version.
4. Shrink version: for shrink-wrap materials with crossways and lengthways flush sealing system, excess material recovered.
5. Poly version.

The PFM Falcon is an horizontal flow wrapper able to produce bags sealed on three sides from an open roll of hot or cold sealable material.

Products

Packages products in the foodstuffs sector, the cosmetics sector, the pharmaceutical sector and the stationery sector.

Features

Ease of cleaning: The PFM model Falcon has been designed with cantilever principles. By those means all the mechanic and electronic components are placed on the back of the machine in separate and protected areas. Thank to this constructive philosophy the front of the machine is then free from obstacles allowing an absolute easy and quick cleaning operations on all the parts of the machine in contact with the products.
Versatility: The Falcon, being an extremely flexible machine, is able to handle a wide variety of products with absolutely reduced down times for change over to a different format. Falcon is available in 9 different versions to satisfy each and every product and production requirement.

STANDARD CONSTRUCTIVE FEATURES:

• Infeed conveyor 2mt. long with interchangeable pushers
• Forming box adjustable both in length and height
• Three separate sets of fin wheels tiltable for the longitudinal seal
• Self-centring Reel Holder complete with Brake
• Height adjustment for the end seal assembly

AVAILABLE VERSIONS:

• Mechanic version (basic version).
• Electronic version (2 axes).
• Servo Touch screen on line version (3 axes).
• Long Dwell High Speed version.
• Extra Wide version.
• Stainless Steel version (AISI 304).
• Vertical Crimper version.
• Shrink version with trim removal.
• Poly version for polyethylene (PE).

The Compact is the revolutionary horizontal packing machine for producing triple-seal, square bottom and gusseted flow-packs. It is designed to meet the most demanding multipack packaging requirements: in fact COMPACT is a real innovation as it can produce Multipacks with other packs inside, flow-packs or packs of other types inserted in an orderly fashion and classified according to a precise layout.

Advantages

• Order and aesthetics: the optimal ratio between the volume of the pack and the volume of the contents make the multipack aesthetically classified, clean, easy to recognise and well-appreciated by the end consumer.
• Saving up to 30-40% on filmcompared to traditional systems: the optimisation of the pack dimensions means important savings in packaging material with respect to traditional loose multipack packaging.
• Innovation: packs produced with flexible, stand up, classified, printable, ecological, economic and marketing-oriented film.

SPECIFICATIONS:

• Main electronic operations driven by motors brushless with electrical axes controlled by a PLC and an alphanumeric programming keyboard or colour touch screen (optional)
• 2 metre loading belt divided into easy to clean sections (standard version)
• AISI 304 structure with aluminium plates, treated chemically against corrosion
• Product group transfer system and pneumatic pusher
• Pack forming system with former tube and “quick-release” system
• Self-centering film pulling belts driven by a brushless motor
• Traverse sealing system with hot-bar crimpers driven by a brushless motor.

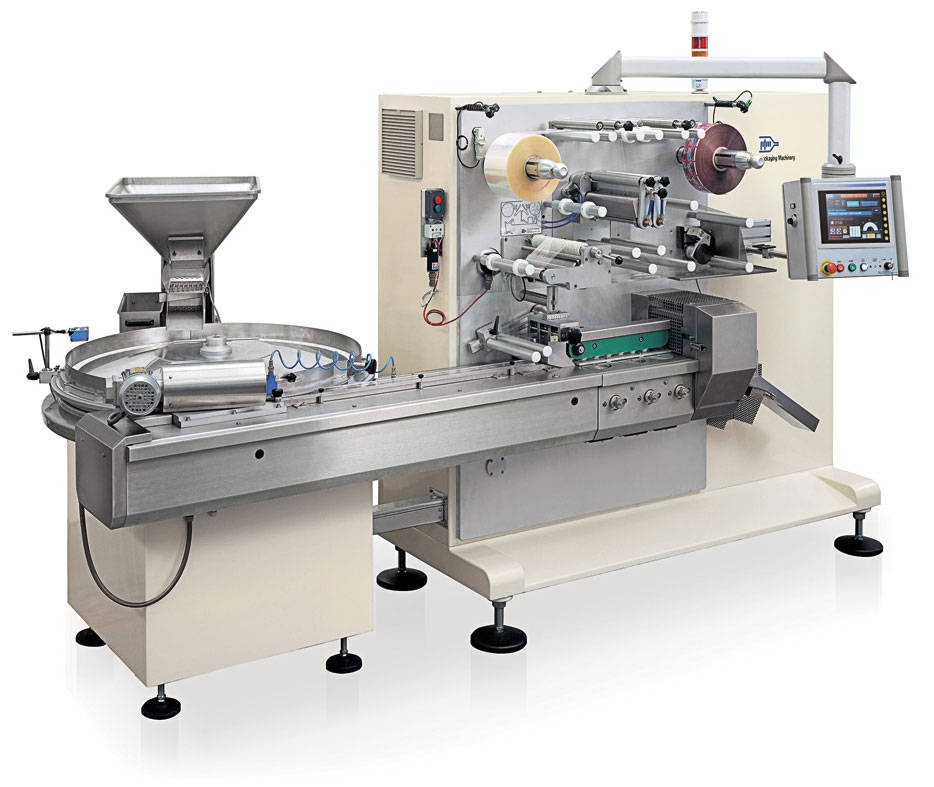

The Blizzard Hard Candy is an horizontal flow pack wrapping machine to produce 3-seal packs starting from a reel of heat or cold-seal film. The machine has been designed for high speed wrapping and for working schedules up to 24 hours a day.

Products

Hard round, square, oval and spherical candies.

TECHNICAL DATA

• The machine is powered by brushless motors in direct electrical axis.
• Automatic heated disk feeder with reverse-turning plate. The control depends on independent motors. There is the possibility to change the timing/synchronisation with the wrapping machine according to the product dimensions, the wrapping speed and the ramp of acceleration or deceleration. This system optimised by PFM allows to largely increase the average production of the machine and to remove any unnecessary stop.
• Cantilevered construction: it makes the cleaning operations easy. In front there are only the sealing assemblies while the mechanical and electrical components are at the back of the machine in separate and guarded environments. Therefore, all impediments for a perfect cleaning have been removed.
• Automatic reel splicer: without reducing the speed of the machine. Maximum efficiency and, moreover, all preliminary operations are made extremely easier.
• Expansion reel holders.
• Power slip rings and gold temperature control for a perfect conductibility of the signal.
• PFM Tele-assistance system: the control unit of the machine functions is inter-faceable via modem with PFM service department.

The BG 2800-4800 produces flow pack packages with three seals that have a perfect appearance. Designed for High Speed packaging, in MAP as well, with completely air tight seals, compact, smooth, free from product wrinkles and of the highest quality for when the package appearance is of the highest importance.

Products

All types of food products that would normally be consumed in more than one stage. The resealability of the “Open & Reclose” packs guarantees good preservation and freshness of the product, and its easy opening ensures notable marketing advantages for the consumer.

Features

• Cleaning: In just a few minutes the machine can be completely cleaned, even in the most difficult areas, all of which are within reach, easily accessible and extractable. All parts that come in to contact with the produce are made of AISI 304 steel.
• Multijaw crossways prolonged sealing unit: High pressure and a prolonged sealing time are the distinguishing factors of the exclusive BG Pack rotating multijaw system. The material remains tight, stretched between the jaws thus making it impossible for wrinkles and defects to form. Each jaws has separate temperature controls monitored via the machine touch screen. If the temperature of any the jaws fluctuates out of the selected range the machine stops automatically with the defective jaw in a quick removal position.
• User Friendly: PC with a colour screen touch panel and software development based on Windows in order to give the utmost simplicity in each programming stage.
• Quick fitting/removal jaw system: The format can be changed in just a few minutes. The jaw is automatically released from its base and can be handled with the appropriate tool supplied with the machine. Its repositioning is equally easy and automatic. Extremely versatile and with high operative productivity along with the guarantee of completely air tight seals: characteristics that are essential for MAP packaging.
• Control and High Performance: Up to 160 packages a minute thanks to the rotating multijaw crossways sealing system with a prolonged sealing time (up to 22 jaws) and with ejecting knife, and thanks to the longitudinal linear shoe sealing which provides smooth and resistant seals. State of the art electronics for the accurate control of centred wrapping material printing with regards to the product.

ADVANTAGES OF OPEN & RECLOSE PACKAGING:

• MAP: allows Modified Atmosphere Packaging with the utmost safety.
• Easy: the package opens easily and without the need to use cutting utensils.
• Functional: The film resistance characteristics and the resealability allow the package to be used for produce consumed in more than one stage.
• Preservation: The resealable tab allows the isolation and protection of the product helping to extend its preservation period from the moment it is opened.
• Information: A greater printable area for supplying information to the consumer and for the market promotion of the product.
